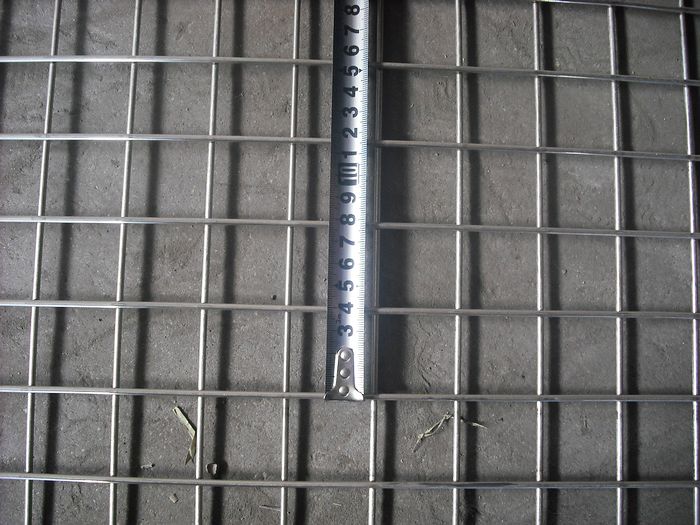

Welded Wire Mesh BD-01
1.Material:
Low carbon steel wire, stainless steel wire weaving and craft.
welded before galvanized,
welded after galvanized,
hot-dip galvanized,
electro galvanized,

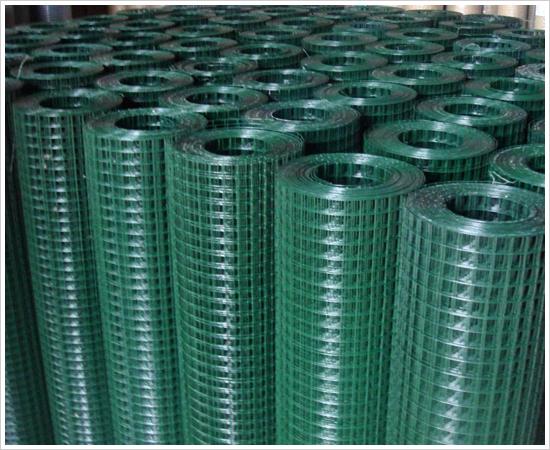

PVC coated,
spray powdered.
2.Features:
With strong antiseptic antioxidant characters.
Specification:
|
Specification List of Welded Wire Mesh |
|
Opening |
Wire Diameter(BWG) |
|
In inch |
In metric unit(mm) |
|
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
|
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
|
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
|
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
|
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
|
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
|
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
|
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
|
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Customed packing available at request. |  |
